General Characteristics
| Cap-Base |
E27 |
| Bulb |
Stick |
| Nominal Lifetime |
10000 hr |
| Rated Lifetime (hours) |
10000 hr |
| Rated Lifetime (years) |
10 an |
Light Technical Characteristics
| Color Code |
827 [CCT of 2700K] |
| Color Rendering Index |
82 Ra8 |
| Color Designation (text) |
Warm White |
| Color Temperature |
2700 K |
| Color Temperature Technical |
2700 K |
| Luminous flux lamp |
600 Lm |
| Rated Luminous Flux |
600 Lm |
| Luminous Efficacy Lamp |
55 Lm/W |
| Lumen Maintenance 2000h |
88 % |
| Lumen Maintenance 6000h |
70 % |
| LLMF - end nominal lifetime |
65 % |
| Chromaticity Coordinate X |
463 - |
| Chromaticity Coordinate Y |
420 - |
Electrical Characteristics
| Rated Wattage |
11.0 W |
| Lamp Wattage |
11 W |
| Power Factor |
0.6 - |
| Voltage |
220-240 V |
| Lamp Current mA |
80 mA |
| Line Frequency |
50/60 Hz |
| Dimmable |
No |
| Wattage Equivalent |
50 W |
| Starting Time |
0.3 s |
| Warm-up Time to 60% Light Outp |
5 (min), 40 (max) s |
Environmental Characteristics
| Energy Efficiency Label (EEL) |
A |
| Mercury (Hg) Content |
1.5 (nom), 2.0 (max) mg |
| Energy consumption kWh/1000h |
11 kWh |
Measuring Conditions
Product Dimensions
| Overall Length C |
117.0 (max) mm |
| Diameter D |
35.0 (max) mm |
| Width F |
44.4 (max) mm |
Product Data
| Order code |
929689113501 |
| Full product code |
929689113501 |
| Full product name |

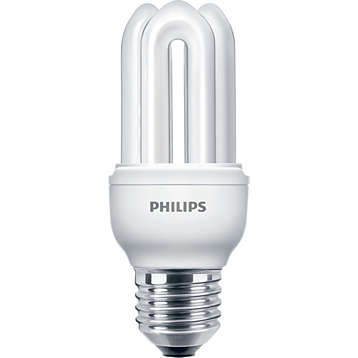

GENIE 11W WW E27 220-240V 1PF |
| Order product name |
GENIE 11W WW E27 220-240V 1PF/6 |
| Pieces per pack |
1 |
| Packing configuration |
6 |
| Packs per outerbox |
6 |
| Bar code on pack - EAN1 |
8711500801197 |
| Bar code on outerbox - EAN3 |
8711500801692 |
| Logistic code(s) - 12NC |
929689113501 |
| Net weight per piece |
0.080 kg |
