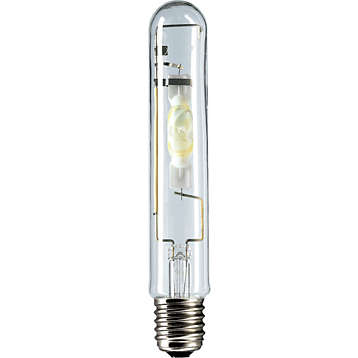

Specification of HPI PLUS 250W 645 BU E40 - Metal Halide
General Characteristics
| System Description | na |
| Cap-Base | E40 |
| Bulb | T46 [T 46mm] |
| Bulb Finish | Clear |
| Operating Position | p20 [Parallel +/-20D or Horizontal(HOR)] |
| Life to 5% failures | 5000 hr |
| Life to 10% failures | 7500 hr |
| Life to 20% failures | 11000 hr |
| Life to 50% failures | 20000 hr |
| |
Light Technical Characteristics
| Color Code | 645 [CCT of 4500K] |
| Color Rendering Index | 65 Ra8 |
| Color Designation (text) | Cool White |
| Color Temperature | 4500 K |
| Color Temperature Technical | 4440 K |
| Luminous Flux EM 25°C, Rated | 20500 Lm |
| Lum Efficacy Rated EM 25°C | 84 Lm/W |
| |
| Lamp Wattage | 250 W |
| Lamp Wattage EM 25°C, Nominal | 250 W |
| Lamp Wattage EM 25°C, Rated | 245 W |
| Lamp Voltage | 128 V |
| Lamp Current EM | 2.10 A |
| Ignition Time | 30 (max) s |
| Dimmable | No |
| Ratio scotopic/photopic lumens | 1.50 - |
Environmental Characteristics
| Cap-Base Temperature | 250 (max) C |
| Bulb Temperature | 550 (max) C |
Product Dimensions
| Overall Length C | 257 (max) mm |
| Diameter D | 47 (max) mm |
| Light Center Length L | 158 mm |
| Arc Length O | 29 mm |
Product Data
| Order code | 928076109299 |
| Full product code | 928076109299 |
| Full product name | MASTER HPI-T Plus 250W/645 E40 1SL |
| Order product name | MASTER HPI-T Plus 250W/645 E40 1SL |
| Pieces per pack | 1 |
| Packing configuration | 12 |
| Packs per outerbox | 12 |
| Bar code on pack - EAN1 | 8710163146003 |
| Bar code on outerbox - EAN3 | 8727900077759 |
| Logistic code(s) - 12NC | 928076109299 |
| ILCOS code | MT-250/45/2B-H-E40-/H |
| Net weight per piece | 0.184 kg |
